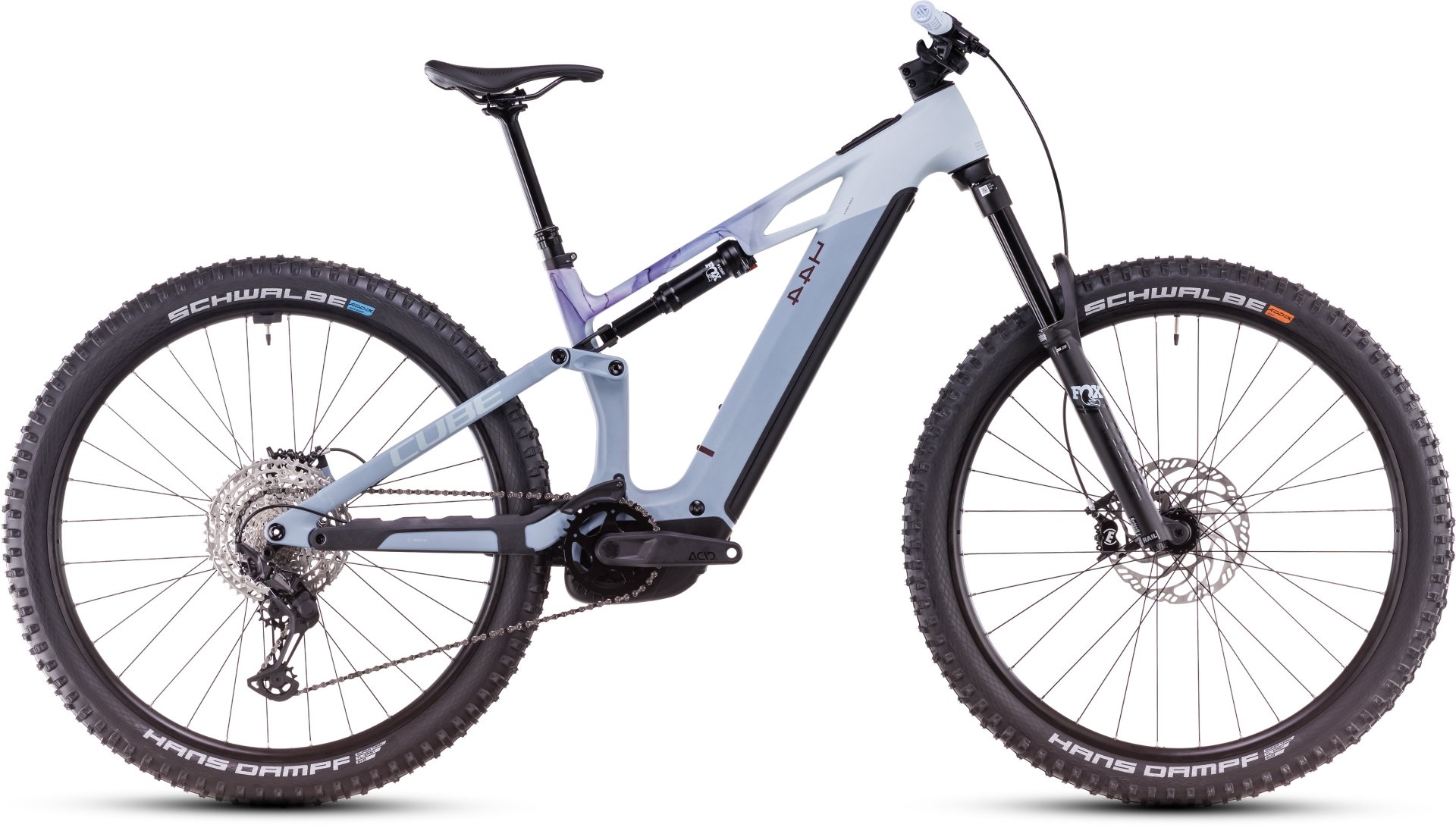

Descrizione

telaio
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

forcella ammortizzata
Fox 36 Float AWL, RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm

ammortizzatore
Fox Float Rhythm R, 230x60mm (27.5: 210x55mm), Rebound Adjust

viteria ammortizzatore
Front: 30x8mm, Rear: DU-Bushing 12,7mm

motore
Bosch Drive Unit Performance Line CX 85Nm, Smart System

Remoto
Bosch System Control incl. Mini Remote

batteria
Bosch PowerTube 800

display
Bosch Purion 400

caricatore
Bosch 4A

freni
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)

cambio
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

comandi cambio
Shimano Deore SL-M6100, Rapidfire-Plus

guarnitura
ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T

pacco pignoni
Shimano Deore CS-M6100, 10-51T

catena
KMC e12

guidacatena
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

serie sterzo
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment

Attacco Manubrio
CUBE Performance Stem E-MTB 35, FPI-Link

manubrio
CUBE Rise Trail Bar 35

manopole
ACID Disrupt

Ruote
cerchi
CUBE EX30, 32H, Disc, Tubeless Ready

mozzo anteriore
CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt

mozzo posteriore
CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt

copertone anteriore
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6

copertone posteriore
Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6

Dotazione
sella
ACID Venec EMTB Trail 140

reggisella
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

colore
pigeonblue ‘n’ art

peso
24,4 kg
