Descrizione
TRAVEL
Standard
120-160mm (Internally Adjustable)
GEOMETRY
Axle to Crown (Standard)
550mm +/- 5mm at 160mm of travel
Axle to Crown (Extended)
570mm +/- 5mm at 180mm of travel
Fork Offset (Rake)
46mm
Max Rotor Size
203mm
STEERER TUBE
Size
Tapered 1 1/8” – 1.5”
Color
Black Anodized

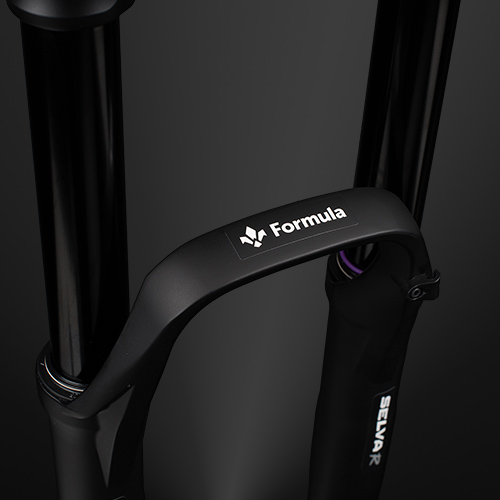

CROWN
Color
Matte Black
Material
Hollow Forged Aluminum
LOWERS
Color
Black (matt) / Ultraviolet (matt)
Dropout
15QR BOOST (Standard)
Axle
Integrated Locking System (ILS): 15QR or 20QR
STANCHIONS
Diameter (Ø)
35mm
Material
7075 Aluminum
Finish
Hard Anodized Black
ADJUSTMENTS

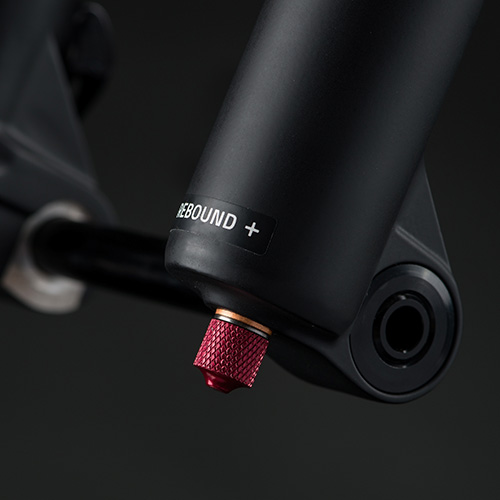

Rebound
21 Click Adjustment

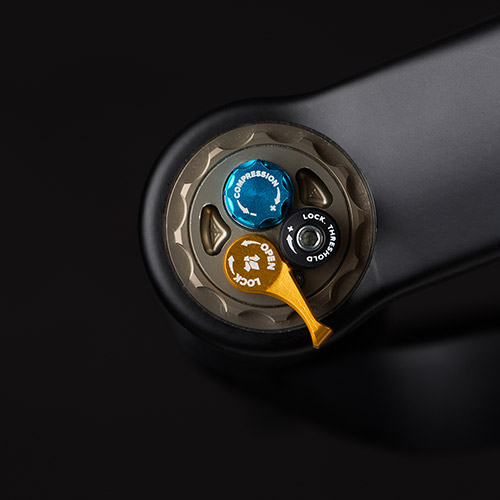

Compression
High and Low Speed 12 Click Adjustment

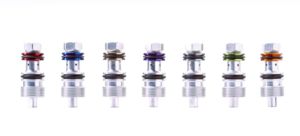

Compression Tuning System
Gold and Red valves included (other valves optional)
Air adjustments
Silver (main), Bronze (sensitivity)

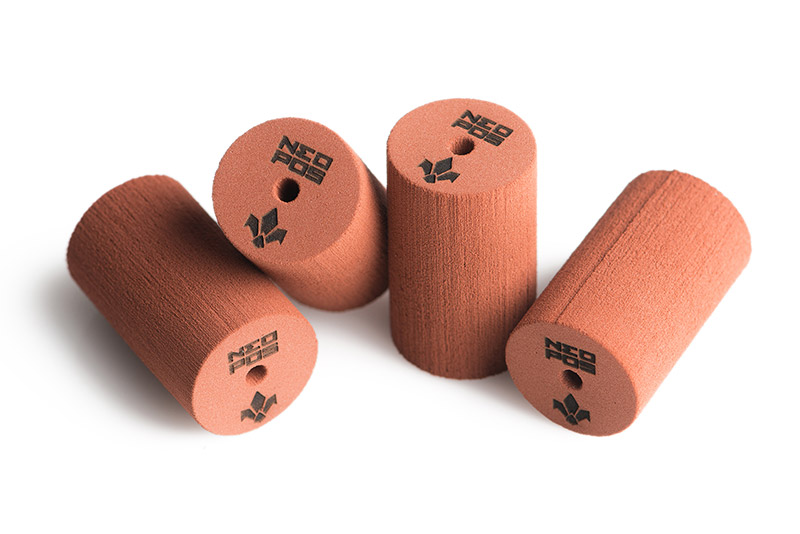

Neopos
Included
Lockout
Crown mounted

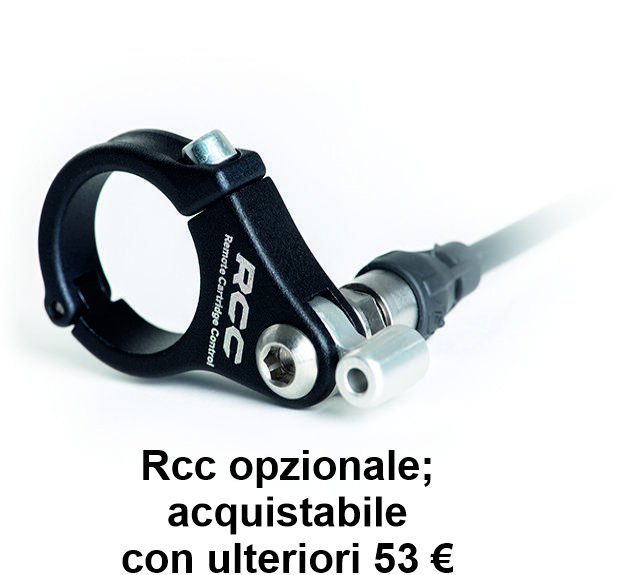

Remote Cartridge Control
Optional
OTHER FEATURES
Damping
Drop-In Cartridge with Internal Floating Technology
Spring type
2Air system
WEIGHT
Standard version
1.940g
Extended version
1.940g
