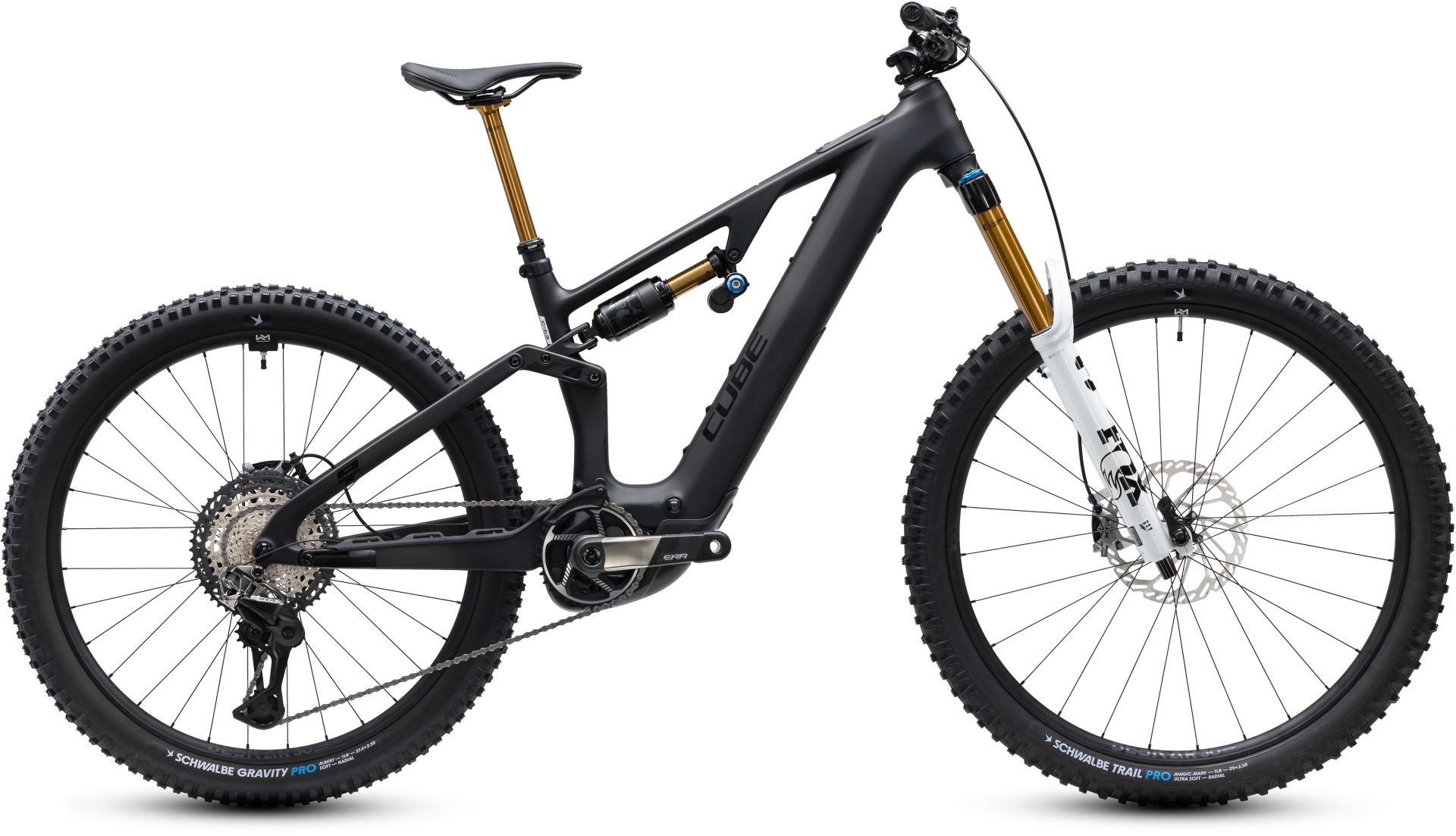

Telaio
telaio
C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
misura
S, M, L, XL
Sospensione
forcella ammortizzata
Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
ammortizzatore
Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
viteria ammortizzatore
Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
Sistema e-bike
motore
Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)
Remoto
Bosch Mini Remote
batteria
Bosch PowerTube 600
display
Bosch Kiox 400C
caricatore
Bosch 4A
Trasmissione e freni
freni
Shimano XTR BR-M9220, Hydr. Disc Brake (200/200)
cambio
Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
comandi cambio
Shimano XTR Di2 SW-M9250-I, Direct Attach
guarnitura
Race Face ERA E-MTB, 36T
pacco pignoni
Shimano XT CS-M8200, 10-51T
catena
Shimano XT CN-M8100
guidacatena
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
serie sterzo
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Attacco Manubrio
Race Face Turbine R 35
manubrio
Race Face ERA 35
manopole
ACID Disrupt
Ruote
ruote
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
copertone anteriore
Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
copertone posteriore
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Dotazione
sella
ACID Venec EMTB Trail 140
reggisella
Fox Transfer Factory 31.6mm, Kashima Coated
pedali
ACID PP MTB
Informazioni articolo
colore
carbon´n´white
peso
21,9 kg
Codice articolo
1106800
